Twin-tank multifunction water treatment system — WODARO TWIN MULTI 2x60
WODARO TWIN MULTI 2×60 L softens water and removes iron, manganese, ammonia and organic compounds. 2 × 60 l of multifunction media; flo Read moreShow less
WODARO TWIN MULTI 2×60 L softens water and removes iron, manganese, ammonia and organic compounds. 2 × 60 l of multifunction media; flow 2.9 m³/h. Brine regeneration. Water analysis is required for selection.
Benefits
Description
WODARO TWIN MULTI 2X60L — water softening and iron removal system

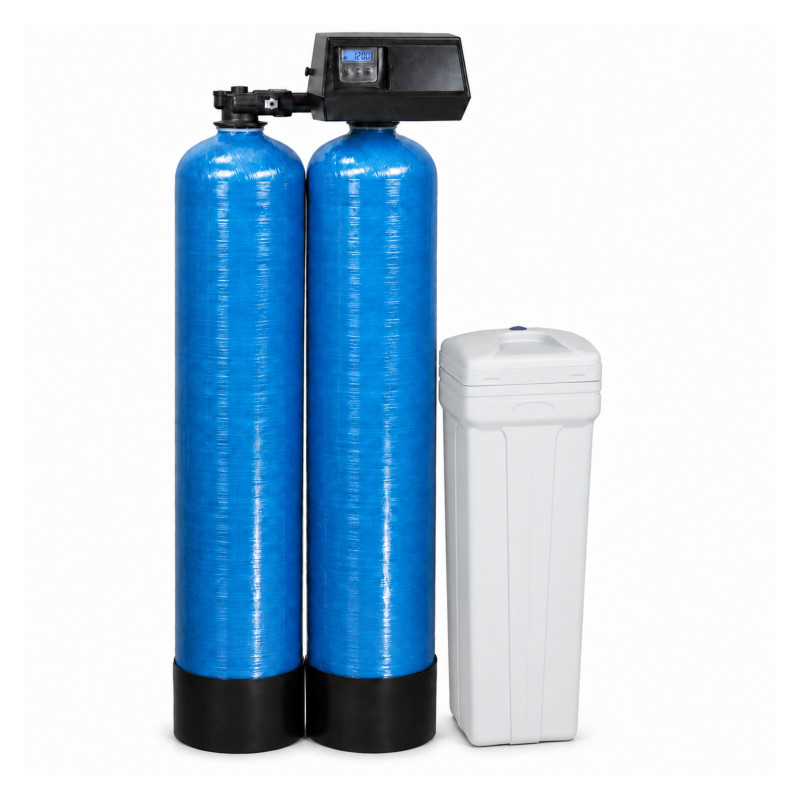

WODARO TWIN MULTI 2X60L is a twin-column multifunction filter with a Clack control valve and media AquaMulti 2 × 60 l. Its rated capacity is 2.9 m³/h. The unit is primarily designed to soften water, while also removing iron, manganese, ammonia and organic compounds.
For hard water and iron deposits
If limescale in the installation is accompanied by rust-coloured stains, hardness reduction alone may not address all the problems. WODARO TWIN MULTI 2X60L uses AquaMulti media, combining softening with removal of additional water constituents.
- Limits limescale build-up in pipes, fittings and water-heating appliances.
- Helps reduce staining associated with iron and manganese, including deposits on installation components.
- Combines several treatment functions in a system with two columns and a separate brine tank.
Construction and AquaMulti regeneration
The unit has two pressure vessels measuring 12 × 52 inches. Each contains 60 l of media. Water is treated as it flows through AquaMulti, and the Clack control valve controls unit operation.
The resin's working capacity is restored by periodic regeneration with a sodium chloride solution. Maintenance requires an adequate salt supply and checks of system operation. The stated media service life is up to 10 years, subject to regeneration.
Before selection, check the water composition and required flow rate. The size of 12 × 52 inches refers to a single vessel, not the complete system. Installation space must accommodate both columns, the control valve and brine tank.
Technical data
| Product name | WODARO TWIN MULTI 2X60L |
|---|---|
| Unit type | Twin-column multifunction treatment system |
| Media | AquaMulti |
| Media quantity | 2 × 60 l |
| Rated capacity | 2.9 m³/h |
| Control valve | Clack |
| Connection diameter | 1″ |
| Size of each vessel | 12 × 52 inches |
| Operating temperature | 1–30°C |
| Operating pressure | 2–6 bar |
| Regeneration | With a sodium chloride solution |
FAQ
Does WODARO TWIN MULTI 2X60L contain 60 or 120 l of media?
Each column contains 60 l. The total media volume in the system is 120 l, hence the designation 2X60L.
Does AquaMulti remove only hardness and iron?
The media also removes manganese, ammonia and organic compounds. Its application to specific water requires assessment of the water parameters.
What is the brine tank capacity?
The documentation specifies 100 and 150 l tanks for this group of units, without clearly assigning one variant to this model. Capacity should be confirmed when ordering.
