Twin-tank multifunction water treatment system — WODARO TWIN MULTI 2x450
WODARO TWIN MULTI 2×450 L softens water and removes iron, manganese, ammonia and organic compounds. 2 × 450 l of multifunction media; f Read moreShow less
WODARO TWIN MULTI 2×450 L softens water and removes iron, manganese, ammonia and organic compounds. 2 × 450 l of multifunction media; flow 18.2 m³/h. Brine regeneration. Water analysis is required for selection.
Benefits
Description
WODARO TWIN MULTI 2X450L — twin-column water treatment system
WODARO TWIN MULTI 2X450L is a multifunction system with a rated capacity of 18,2 m³/h, equipped with 2 × 450 l of AquaMulti media. It softens water and removes iron, manganese, ammonia and organic compounds. It is designed for installations whose required flow rate and water parameters match the unit's capabilities.
Water treatment and reduced deposits
The main purpose of WODARO TWIN MULTI 2X450L is hardness reduction. AquaMulti combines this process with removal of additional constituents that can cause water discolouration, deposits and staining of installation equipment.
- Protection against limescale build-up: softening limits limescale deposits.
- Multifunction action: one type of media reduces hardness and removes several other constituents.
- Two columns with 450 l each: the total AquaMulti volume is 900 l.
- 2″ connection: the size specified in the unit's technical documentation.
Construction and everyday operation

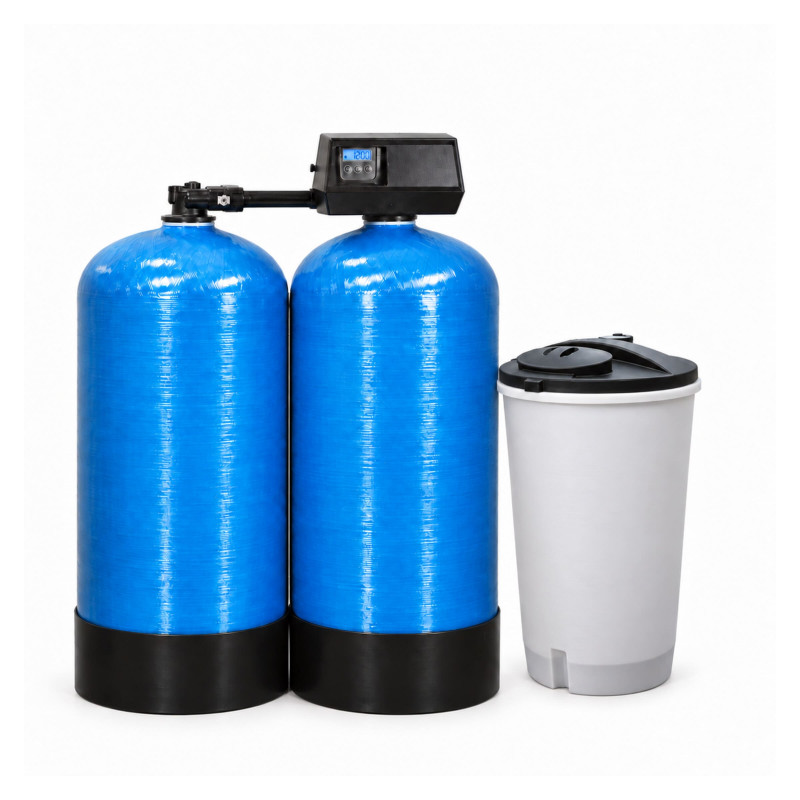

The unit comprises two pressure vessels 30 × 72 inches, AquaMulti media, a Clack control valve and a brine tank. Water is treated as it flows through the media.
Periodic regeneration with a sodium chloride solution restores the resin's working capacity. Maintain a salt supply and check system operation. The stated media service life is up to 10 years, subject to the required regeneration.
Unit selection requires water analysis and determination of peak flow. Before installation, establish the exact Clack control valve configuration, brine tank capacity and space needed to position and maintain the system.
Technical data
| Product name | WODARO TWIN MULTI 2X450L |
|---|---|
| Unit type | Twin-column multifunction treatment system |
| Media | AquaMulti |
| Media quantity | 2 × 450 l |
| Rated capacity | 18.2 m³/h |
| Control valve | Clack |
| Connection diameter | 2″ |
| Size of each vessel | 30 × 72 inches |
| Operating temperature | 1–30°C |
| Operating pressure | 2–6 bar |
| Regeneration | With a sodium chloride solution |
FAQ
Is all 900 l of media in one vessel?
No. WODARO TWIN MULTI 2X450L has two columns with 450 l of AquaMulti each. This gives 900 l of media in total.
Can salt consumption be determined solely from media volume?
The documentation does not state salt consumption for this unit. Determining operating costs requires water parameters, consumption and regeneration settings for the specific configuration.
How can I check whether a capacity of 18,2 m³/h will be suitable?
Compare it with the required flow rate in the installation, considering simultaneous operation of water-using equipment. Also check whether AquaMulti is suitable for the composition of the water treated.
