Twin-tank multifunction water treatment system — WODARO TWIN MULTI 2x300
WODARO TWIN MULTI 2×300 L softens water and removes iron, manganese, ammonia and organic compounds. 2 × 300 l of multifunction media; f Read moreShow less
WODARO TWIN MULTI 2×300 L softens water and removes iron, manganese, ammonia and organic compounds. 2 × 300 l of multifunction media; flow 5.8 m³/h. Brine regeneration. Water analysis is required for selection.
Benefits
Description
WODARO TWIN MULTI 2X300L — multifunction system with a Clack control valve
WODARO TWIN MULTI 2X300L is a twin-column water treatment system with 2 × 300 l of AquaMulti and a rated capacity of 11.7 m³/h. It combines softening with removal of iron, manganese, ammonia and organic compounds. It helps reduce limescale and deposits in installations with a flow rate matching the unit's parameters.
Multifunction filtration at 11.7 m³/h
WODARO TWIN MULTI 2X300L treats water requiring more than softening alone. AquaMulti media combines several functions in one system. Selection remains based on water test results and actual installation demand, including during peak consumption.
- Hardness reduction: makes water less prone to form limescale deposits.
- Iron and manganese removal: helps limit staining and deposits associated with these constituents.
- 600 l AquaMulti: the media is divided between two columns of 300 l each.
Construction and regeneration

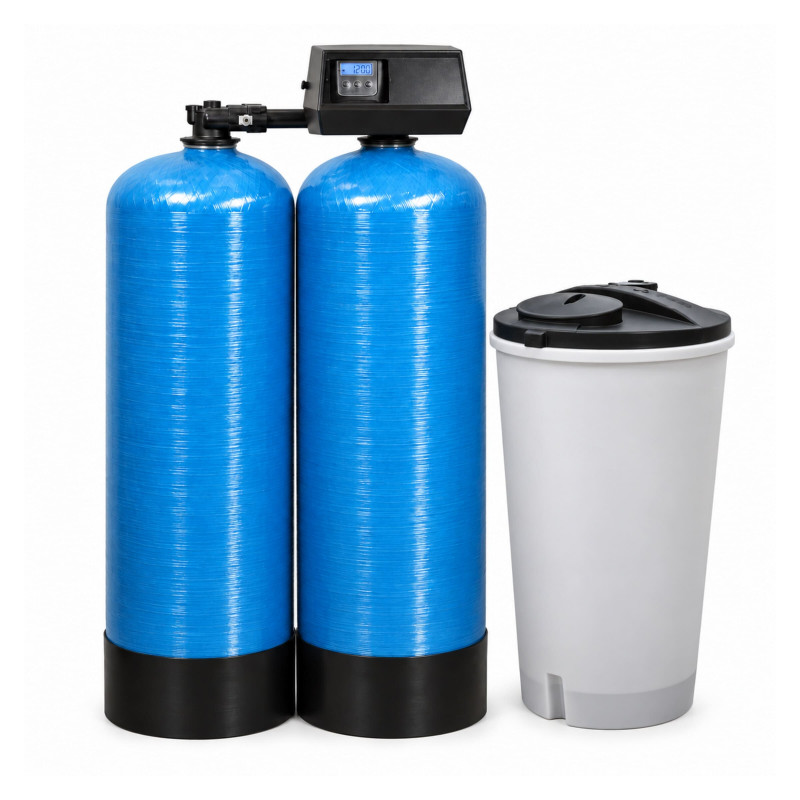

The system has two pressure vessels measuring 24 × 72 inches, AquaMulti media, a Clack control valve and a brine tank. As water flows through the media, it is softened and treated for constituents targeted by AquaMulti.
The resin must be periodically regenerated with a sodium chloride solution. Maintenance includes supplying salt and checking system operation. The stated media service life is up to 10 years, subject to regeneration.
The documentation specifies a connection diameter range of 1½–2″. Confirm the specific size, Clack control valve variant, brine tank and complete system dimensions before installing.
Technical data
| Product name | WODARO TWIN MULTI 2X300L |
|---|---|
| Unit type | Twin-column multifunction treatment system |
| Media | AquaMulti |
| Media quantity | 2 × 300 l |
| Rated capacity | 11.7 m³/h |
| Control valve | Clack |
| Connection diameter according to the documentation | 1½–2″ |
| Size of each vessel | 24 × 72 inches |
| Operating temperature | 1–30°C |
| Operating pressure | 2–6 bar |
| Regeneration | With a sodium chloride solution |
FAQ
Is the complete system's capacity 11.7 or 23.4 m³/h?
The rated capacity of WODARO TWIN MULTI 2X300L is 5.8 m³/h. It should not be doubled because two columns are used.
Is the unit only used for softening?
No. AquaMulti also removes iron, manganese, ammonia and organic compounds. Suitability for specific water requires confirmation according to its analysis.
Does the size of 24 × 72 inches specify the complete system dimensions?
No. This is the size of one vessel. Planning installation space requires allowing for two columns, controls and a separate brine tank.
