Twin-tank multifunction water treatment system — WODARO TWIN MULTI 2x30
WODARO TWIN MULTI 2×30 L softens water and removes iron, manganese, ammonia and organic compounds. 2 × 30 l of multifunction media; flo Read moreShow less
WODARO TWIN MULTI 2×30 L softens water and removes iron, manganese, ammonia and organic compounds. 2 × 30 l of multifunction media; flow 1.8 m³/h. Brine regeneration. Water analysis is required for selection.
Benefits
Description
WODARO TWIN MULTI 2X30L — twin-column multifunction treatment system
WODARO TWIN MULTI 2X30L is a twin-column system for simultaneous water softening and iron removal. It contains 2 × 30 l of AquaMulti media, and its rated capacity is 1.8 m³/h. It helps limit limescale and deposits associated with iron and manganese. A Clack control valve controls unit operation.
One system for several water problems
WODARO TWIN MULTI 2X30L treats water where excessive hardness is accompanied by additional contaminants. Its main purpose is softening. AquaMulti media also removes iron, manganese, ammonia and organic compounds.
- Less limescale: hardness reduction helps protect water heaters, fittings and pipework from limescale build-up.
- Reduced rust-coloured stains: iron removal reduces staining of fittings and laundry.
- Multifunction media: combines softening with removal of several other water constituents.
Construction, operation and maintenance

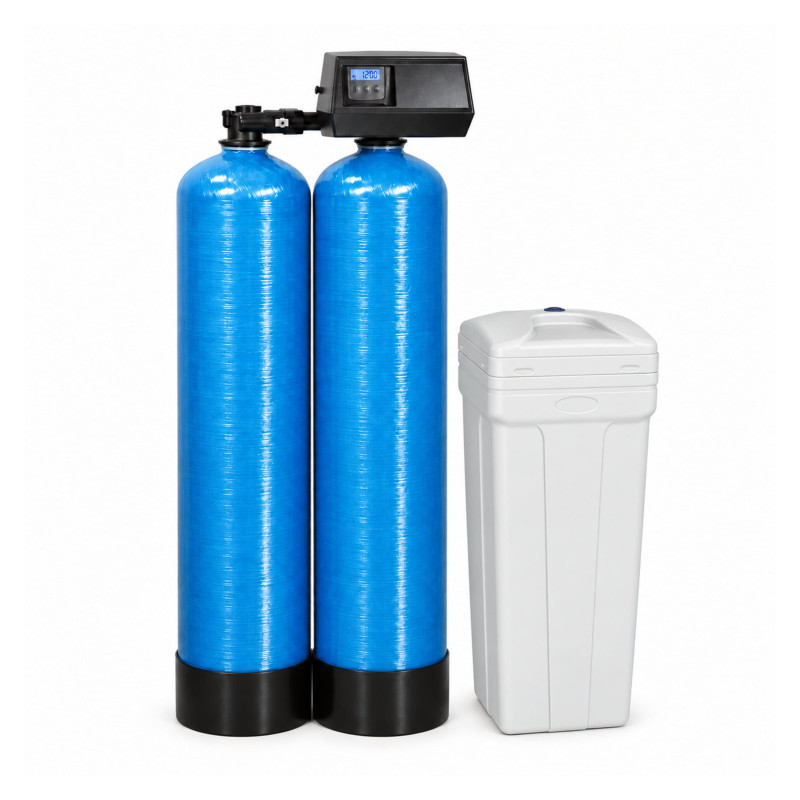

The unit uses two pressure vessels measuring 10 × 44 inches. Each column contains 30 l of AquaMulti media. The construction also includes a Clack control valve and a brine tank.
Water is treated as it flows through the media. The resin requires periodic regeneration with a sodium chloride solution. Routine maintenance includes replenishing salt and monitoring unit operation. The stated media service life is up to 10 years, subject to regeneration.
System selection should be based on water analysis and the required flow rate. Before ordering, confirm the exact Clack control valve model, brine tank capacity and space required for installation and maintenance.
Technical data
| Product name | WODARO TWIN MULTI 2X30L |
|---|---|
| Unit type | Twin-column multifunction treatment system |
| Media | AquaMulti |
| Media quantity | 2 × 30 l |
| Rated capacity | 1.8 m³/h |
| Control valve | Clack |
| Connection diameter | 1″ |
| Size of each vessel | 10 × 44 inches |
| Operating temperature | 1–30°C |
| Operating pressure | 2–6 bar |
| Regeneration | With a sodium chloride solution |
FAQ
Does WODARO TWIN MULTI 2X30L remove iron and soften water simultaneously?
Yes, AquaMulti media is designed for this application. Suitability of the system for a specific installation should be assessed from water test results.
What does 2X30L in the name mean?
The unit has two columns, each containing 30 l of media. This gives 60 l of AquaMulti in total. The rated capacity of the complete system is 1.8 m³/h.
Does all the media need regular replacement?
The basic maintenance procedure is brine regeneration. The resin replacement interval depends on its condition and operating conditions. The stated service life is up to 10 years.
