Twin-tank multifunction water treatment system — WODARO TWIN MULTI 2x200
WODARO TWIN MULTI 2×200 L softens water and removes iron, manganese, ammonia and organic compounds. 2 × 200 l of multifunction media; f Read moreShow less
WODARO TWIN MULTI 2×200 L softens water and removes iron, manganese, ammonia and organic compounds. 2 × 200 l of multifunction media; flow 8.9 m³/h. Brine regeneration. Water analysis is required for selection.
Benefits
Description
WODARO TWIN MULTI 2X200L — twin-column multifunction treatment system
WODARO TWIN MULTI 2X200L is a twin-column water softening and multifunction treatment system. The two columns contain 200 l of AquaMulti media each, giving 400 l in total. The unit combines hardness reduction with removal of iron, manganese, ammonia and organic compounds. A Clack control valve controls system operation.
Softening and iron removal in one system
WODARO TWIN MULTI 2X200L is designed for installations where hard water is accompanied by additional problems, such as rust-coloured stains or deposits associated with iron and manganese. AquaMulti media combines several treatment functions in one unit.
- Reduced limescale: softening makes water less prone to form limescale deposits in pipework and water-heating appliances.
- Less iron and manganese staining: removing these constituents helps limit deposits and streaks on fittings.
- Multifunction action: AquaMulti also removes ammonia and organic compounds.
- Two columns with 200 l each: the total media volume in the system is 400 l.
Construction and operating principle

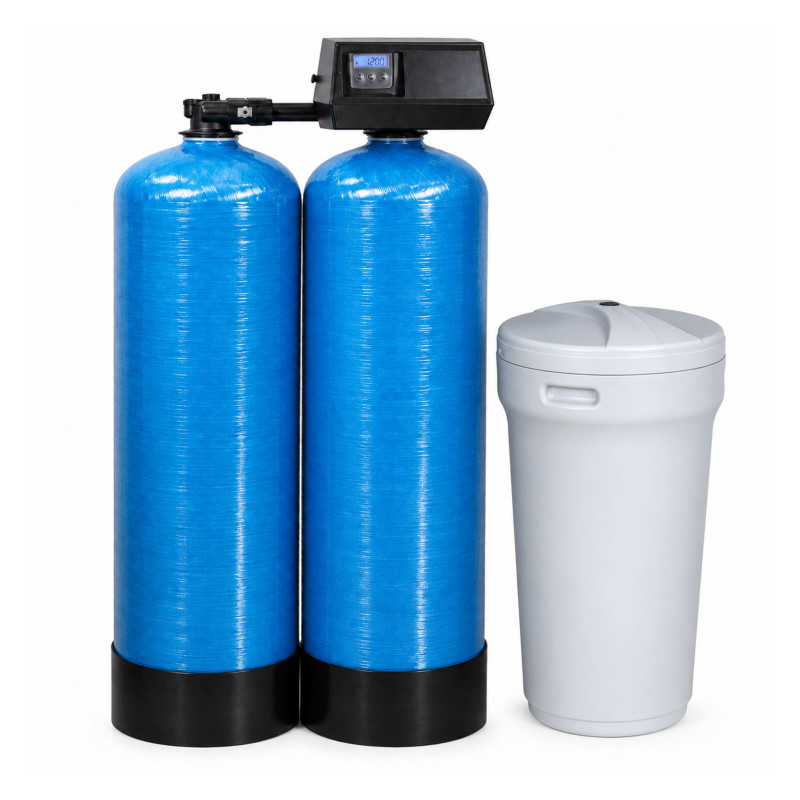

The system consists of two pressure vessels filled with AquaMulti media, a Clack control valve and a brine tank. Water is treated as it flows through the media, which softens it and removes additional constituents.
Unit selection should consider water analysis results and the required flow rate. The media volume alone does not determine whether the system is suitable for a specific installation.
Regeneration and operation
AquaMulti media requires periodic regeneration with a sodium chloride solution. Routine maintenance includes replenishing salt, checking control operation and checking treatment results. Regeneration settings should be matched to water parameters and installation usage.
Before ordering, confirm the specific configuration's capacity, connection size, Clack control valve variant and brine tank capacity. The installation location should accommodate both columns, the tank and space needed for maintenance.
Technical data
| Product name | WODARO TWIN MULTI 2X200L |
|---|---|
| Unit type | Twin-column multifunction treatment system |
| Number of columns | 2 |
| Media | AquaMulti |
| Media volume in one column | 200 l |
| Total media volume | 400 l — 2 × 200 l |
| Control valve | Clack |
| Main function | Water softening |
| Additional media applications | Removal of iron, manganese, ammonia and organic compounds |
| Regeneration | With a sodium chloride solution |
FAQ
What does 2X200L in the unit name mean?
WODARO TWIN MULTI 2X200L has two columns, each containing 200 l of AquaMulti. The system holds 400 l of media in total.
Does the unit soften water and remove iron simultaneously?
AquaMulti is designed for this application. However, suitability for specific water should be confirmed from its analysis and the required flow rate.
Is media volume sufficient to determine capacity?
No. Capacity should be established for the specific unit configuration. It cannot be determined solely from the number of litres of media.
