Twin-tank multifunction water treatment system — WODARO TWIN MULTI 2x160
WODARO TWIN MULTI 2×160 L softens water and removes iron, manganese, ammonia and organic compounds. 2 × 160 l of multifunction media; f Read moreShow less
WODARO TWIN MULTI 2×160 L softens water and removes iron, manganese, ammonia and organic compounds. 2 × 160 l of multifunction media; flow 6.6 m³/h. Brine regeneration. Water analysis is required for selection.
Benefits
Description
WODARO TWIN MULTI 2X160L — twin-column multifunction filter
WODARO TWIN MULTI 2X160L is a water softening and multifunction treatment system based on 2 × 160 l of AquaMulti media. Its rated capacity is 6.6 m³/h. In addition to hardness reduction, the unit removes iron, manganese, ammonia and organic compounds.
Reduced limescale and deposits in the installation
WODARO TWIN MULTI 2X160L is a solution for installations requiring simultaneous softening and iron removal at a flow rate matching the unit's parameters. Hardness reduction helps limit limescale deposits, while iron and manganese removal reduces staining caused by their presence.
- Two AquaMulti columns: 160 l of media in each vessel.
- Several treatment functions: softening combined with removal of additional water constituents.
- Clack control: the control valve controls unit operation.
System construction and operation

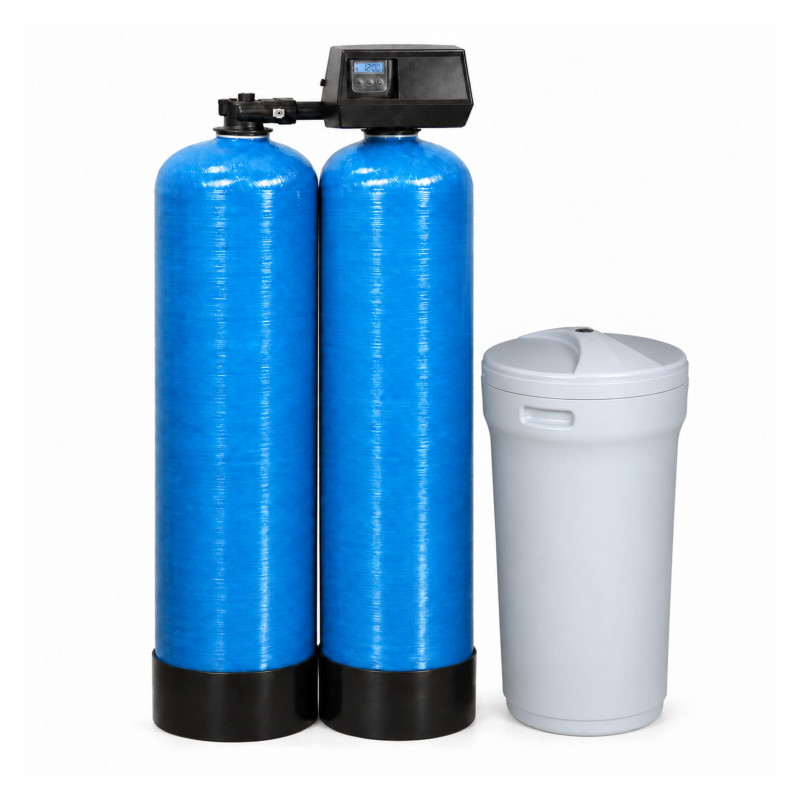

The unit uses two pressure vessels measuring 18 × 65 inches, filled with AquaMulti, a Clack control valve and a brine tank. Water is treated as it flows through the media.
The resin requires periodic regeneration with a sodium chloride solution. Routine maintenance includes replenishing salt and checking unit operation. The stated media service life is up to 10 years, subject to the required regeneration.
Selection should be preceded by water analysis. The documentation specifies connections within 1¼–1½″, so the exact size and the control valve and brine tank configuration must be confirmed before preparing installation.
Technical data
| Product name | WODARO TWIN MULTI 2X160L |
|---|---|
| Unit type | Twin-column multifunction treatment system |
| Media | AquaMulti |
| Media quantity | 2 × 160 l |
| Flow rate | 6.6 m³/h |
| Control valve | Clack |
| Connection diameter according to the documentation | 1¼–1½″ |
| Size of each vessel | 18 × 65 inches |
| Operating temperature | 1–30°C |
| Operating pressure | 2–6 bar |
| Regeneration | With a sodium chloride solution |
FAQ
Does 160 l refer to all the media in the unit?
No. Each of the two columns contains 160 l of media. The total AquaMulti volume in WODARO TWIN MULTI 2X160L is 320 l.
Can the system remove manganese?
Yes, manganese removal is one of the applications of AquaMulti media. Selection for a specific concentration requires assessment of water analysis.
Which brine tank is specified for this unit?
The documentation lists 200 and 520 l tanks for this group of units, without clearly assigning a capacity to each version. The tank variant should be established when ordering.
