Twin-tank multifunction water treatment system — WODARO TWIN MULTI 2x120
WODARO TWIN MULTI 2×120 L softens water and removes iron, manganese, ammonia and organic compounds. 2 × 120 l of multifunction media; f Read moreShow less
WODARO TWIN MULTI 2×120 L softens water and removes iron, manganese, ammonia and organic compounds. 2 × 120 l of multifunction media; flow 5.2 m³/h. Brine regeneration. Water analysis is required for selection.
Benefits
Description
WODARO TWIN MULTI 2X120L — water treatment system with a Clack control valve
WODARO TWIN MULTI 2X120L is a multifunction filter in a twin-column configuration, containing 2 × 120 l of AquaMulti. Its rated capacity is 5.2 m³/h. The system softens water and removes iron, manganese, ammonia and organic compounds, helping reduce deposits and staining in the installation.
Multifunction treatment matched to flow rate
WODARO TWIN MULTI 2X120L is designed for installations requiring softening combined with removal of other water constituents. Selection should consider analysis results and treated water demand. Daily consumption alone does not replace assessing the flow required during peak demand.
- Water softening: reduces conditions that contribute to limescale build-up on installation components.
- Iron and manganese removal: helps reduce deposits and staining of fittings.
- AquaMulti media: combines these functions with removal of ammonia and organic compounds.
Construction and maintenance

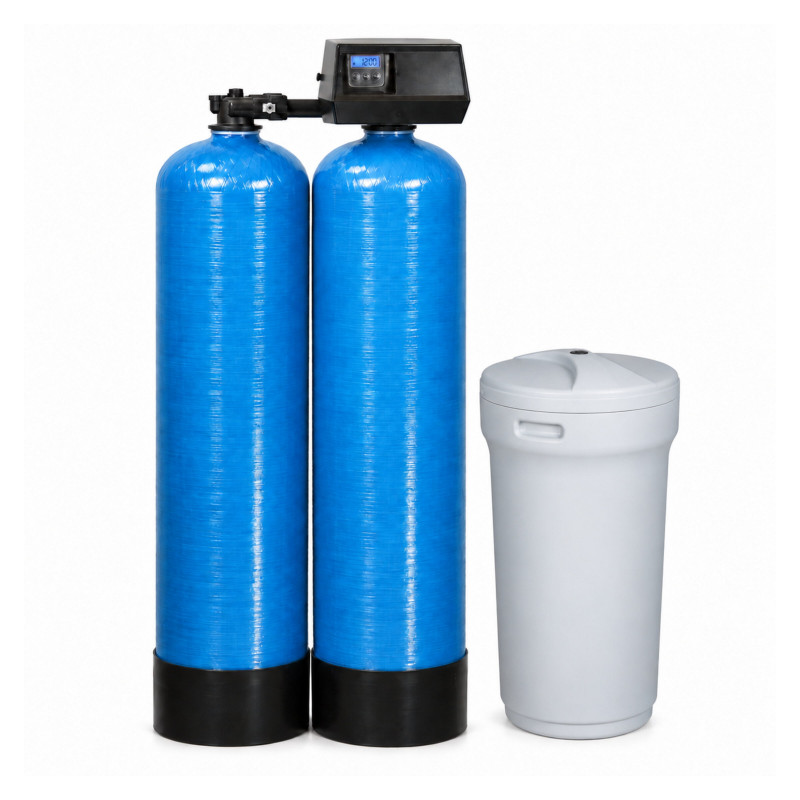

Two pressure vessels 16 × 65 inches contain 120 l of media each. A Clack control valve controls unit operation. The system also includes a tank for the brine needed to regenerate the resin.
Water is treated during contact with the media. Periodic regeneration uses a sodium chloride solution, so maintenance includes salt replenishment and checking results. The stated media service life is up to 10 years, subject to regeneration.
The documentation specifies a connection diameter range of 1¼–1½″. Before preparing installation, confirm the specific connection size, Clack control valve model and brine tank capacity in the configuration ordered.
Technical data
| Product name | WODARO TWIN MULTI 2X120L |
|---|---|
| Unit type | Twin-column multifunction treatment system |
| Media | AquaMulti |
| Media quantity | 2 × 120 l |
| Rated capacity | 5.2 m³/h |
| Control valve | Clack |
| Connection diameter according to the documentation | 1¼–1½″ |
| Size of each vessel | 16 × 65 inches |
| Operating temperature | 1–30°C |
| Operating pressure | 2–6 bar |
| Regeneration | With a sodium chloride solution |
FAQ
How much AquaMulti does WODARO TWIN MULTI 2X120L contain?
240 l in total, divided between two columns of 120 l each.
Can the 5.2 m³/h capacity be doubled because there are two columns?
No. The specified capacity of the complete unit is 2.6 m³/h. The number of columns is not a basis for increasing this value.
Do I need to know the iron concentration before purchase?
Yes. Selection requires water analysis results, including hardness and the concentrations of constituents requiring removal. The documentation does not specify limiting concentrations for this model.
