Self-Cleaning Water Filters

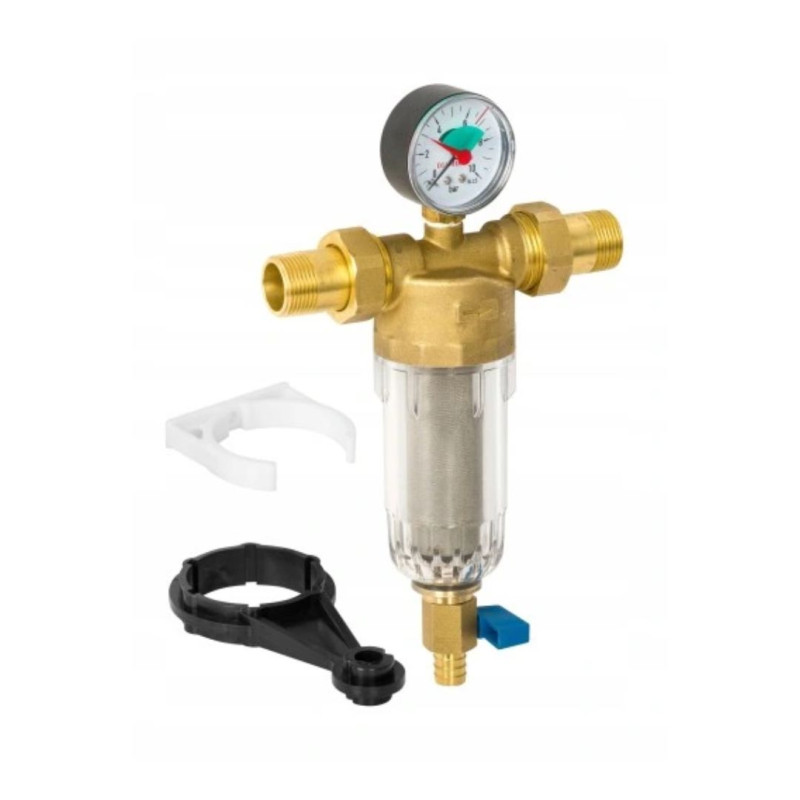

DIAMOND 3/4 Mechanical Water Filter Self-Cleaning Inline Pre-Set
Rating
The self-cleaning mechanical filter DIAMOND 3/4" is a pipe solution for the preliminary protection of the water installation against sa Read moreShow less
The self-cleaning mechanical filter DIAMOND 3/4" is a pipe solution for the preliminary protection of the water installation against sand, rust, and contaminants after installation. Backwashing allows for the removal of sediment without disassembly, and the drain valve facilitates the emptying of contaminants from the housing. The built-in manometer enables ongoing monitoring of operating pressure.
Specifications
ART.350-25
998 Items
- Connection size
- 3/4″
- Installation form
- Inline / pipe-mounted
- Installation location
- Whole-house inlet
- Product type
- Self-cleaning filter
- Solution type
- Whole house / POE
- Technology
- Mechanical filtration
Description
DIAMOND3/4 Self-Cleaning Inline Mechanical Water Filter Pre-Filter SET is a practical water filter for preliminary protection of installations against sand, rust, and installation residue. Thanks to the backwash function, drain valve, and built-in pressure gauge, it supports convenient water treatment at the first stage of protecting the installation and devices working with a home water filtration system, including solutions such as a osmosis filter, reverse osmosis filter, or reverse osmosis system.
Effective protection of the water installation at the pre-filtration stage
The self-cleaning DIAMOND 3/4" mechanical filter has been designed as a modern solution for protecting water installations against mechanical impurities. Its purpose is to capture deposits such as sand, rust, and installation residue that may appear in the water and affect the durability of fittings, devices, and the entire installation.
This is an inline pre-filter that helps maintain better operating conditions for a domestic or utility water installation. Limiting the inflow of mechanical impurities is an important element in protecting valves, taps, connections, and subsequent filtration stages.
Main features and functions
Backwash without disassembly
The effective backwash function makes it possible to remove accumulated contaminants without the need to disassemble the filter. This solution significantly simplifies routine maintenance and allows you to restore its high efficiency more quickly.
Drain valve for convenient cleaning
The applied drain valve simplifies the maintenance process and allows easy removal of contaminants accumulating at the bottom of the housing. As a result, filter operation is more convenient, and cleaning can be carried out efficiently and without unnecessary complications.
Built-in pressure gauge
The pressure gauge allows monitoring the pressure in the installation, which is important for maintaining the correct operating parameters of the filter. Ongoing pressure control helps better assess the system's operating conditions and supports proper operation of the water installation.
Why choose the DIAMOND 3/4 filter
This model combines effective mechanical protection with everyday convenience. It works well where installation durability, simpler maintenance, and quick access to basic operating parameter control matter.
Installation protection – effectively protects installations against mechanical impurities, helping to extend their service life.
Self-cleaning design – the backwash function supports long filter life and maintaining high efficiency.
Easy operation – the drain valve and pressure gauge make daily use and maintenance easier.
Versatile use – the filter is suitable for various types of installations, providing reliable protection against contaminants.
Application
The filter is suitable for houses, apartments, and other properties equipped with water installations where effective protection against mechanical contaminants is needed. It can operate as a pre-filter, helping protect installation components and further water treatment and filtration devices.
This is a particularly practical solution wherever contaminants such as sand, rust, or installation sediment can negatively affect the operation of fittings and installation components.
A pre-filter works best as part of a regularly monitored filtration system. Periodic backwashing and removing sediment through the drain valve helps maintain high performance and convenient operation.
User comfort and operation
Daily operation of the filter has been simplified thanks to solutions that support quick cleaning and device control. Backwashing allows the accumulated sediment to be removed without taking the filter apart, and the drain valve makes it easy to discharge contaminants from the housing.
An additional advantage is the pressure gauge, which makes it easier to monitor the pressure in the installation on an ongoing basis. Such control supports maintaining proper operating conditions and allows quicker response to changes in the installation.
Technical specifications
| L dimension | 150.4 mm |
|---|---|
| A1 dimension | External R 3/4" inch |
| A2 dimension | Internal G 3/4" inch |
| Pressure class | PN16 |
| Product code | ART.350-20 |
| EAN code | 5907547686986 |
Questions
What is the DIAMOND 3/4 mechanical filter used for?
It is a pre-filter designed to protect the water installation against mechanical contaminants such as sand, rust, and installation residue. It helps protect fittings, installation components, and subsequent filtration stages.
What contaminants does the DIAMOND3/4 Self-Cleaning Inline Mechanical Water Filter Pre-Filter retain?
The filter is designed to capture mechanical contaminants present in the water, especially sand, rust, and sediment appearing after installation work.
How does the backwash function work?
Backwashing makes it possible to remove accumulated contaminants without the need to disassemble the filter. This solution makes maintenance easier and shortens the time needed to restore the device to proper working condition.
What is the drain valve used for?
The drain valve makes it easier to clean the filter and allows contaminants accumulating at the bottom of the housing to be removed. As a result, operation is simpler and more convenient.
Why does the DIAMOND3/4 Self-Cleaning Inline Mechanical Water Filter Pre-Filter have a pressure gauge?
The built-in pressure gauge allows ongoing monitoring of the pressure in the installation. This is important for maintaining the correct operating parameters of the filter and better control of the entire system.
Is this filter suitable for a house or apartment?
Yes, the filter works well in houses, apartments, and other properties using a water installation where protection against mechanical contaminants is needed.
Can the filter work with other water treatment systems?
Yes, as a pre-filter it can support the protection of other installation components and devices used for water treatment, such as a water filtration system, osmosis filter, reverse osmosis filter, or reverse osmosis.
What are the filter connections of the DIAMOND 3/4?
The specification includes A1 dimension: external R 3/4" inch and A2 dimension: internal G 3/4" inch. The length marked as L dimension is 150.4 mm.
What is the pressure class of this model?
The filter has a PN16 pressure class.
