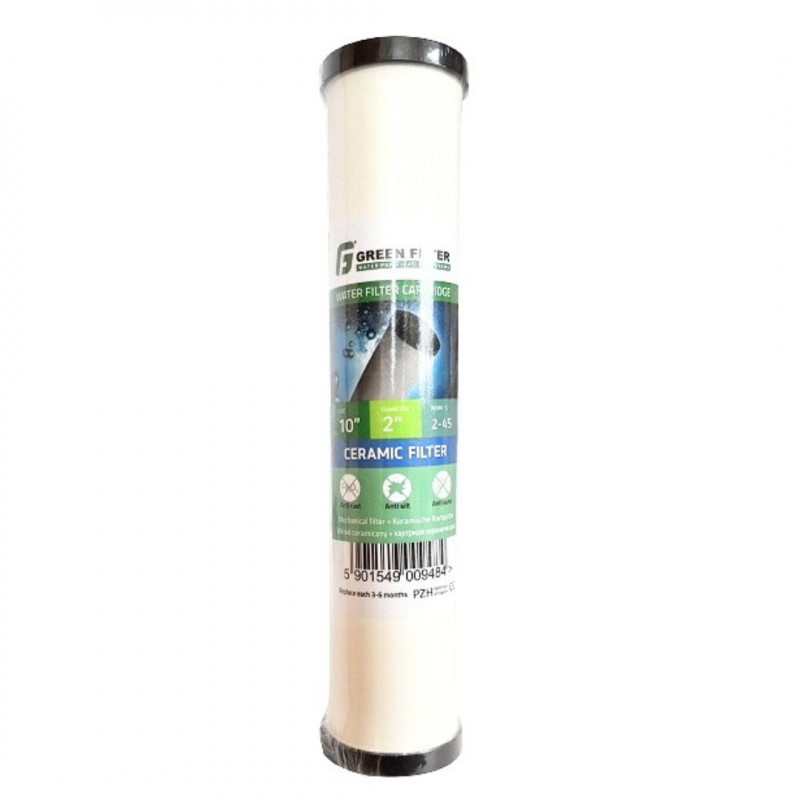

CERAMIC FILTER CARTRIDGE FOR CLAY WATER FILTER 10''

10" ceramic cartridge for mechanical drinking water filtration

The 10" ceramic cartridge made of clay ceramic is designed for mechanical filtration of drinking water. Its task is to capture fine solid contaminants and suspended particles present in the water, helping improve its clarity and supporting further filtration stages in the installation.

A filtration accuracy of 0.5 microns means the cartridge effectively retains contaminants such as sand, silt, rust, and other suspended solids. The low micron rating also helps reduce the presence of some microorganisms, including certain bacteria and viruses.

Main benefits

• mechanical drinking water filtration with 0.5-micron accuracy,
• helps remove sand, silt, rust, and other fine suspended solids,
• the low micron rating can reduce some microorganisms, including certain bacteria and viruses,
• reusable after washing and rinsing,
• compatible with most 10" housings,
• operating temperature range of 2-45°C.

How does a ceramic filter made of clay ceramic work?

The porous structure of the ceramic material acts as a mechanical barrier for solid contaminants. Water passes through the cartridge, while larger particles and fine suspended solids are retained on the surface and within the filtration structure. This makes the cartridge suitable for pre-filtration or standalone mechanical filtration, and in more advanced installations it can support devices such as an osmosis filter, reverse osmosis filter, or reverse osmosis system.

It is a good choice wherever a simple and effective filtration element is needed to improve water quality in terms of mechanical sediment.

Application

The 10" ceramic cartridge is used in standard 10" inline housings designed for drinking water filtration. It can work as a standalone mechanical cartridge or as part of a larger system where protecting subsequent installation components from fine suspended solids is important.

• for drinking water filtration,
• for removing mechanical contaminants from water,
• for improving water clarity,
• as a pre-treatment water element,
• as a supplement to a home water filtration system.

Operation and reuse

One of the practical advantages of this cartridge is its reusability. When the filtration surface becomes dirty, the cartridge can be used again after washing and rinsing. This helps extend its service life and maintain mechanical filtration performance.

Regular inspection of the cartridge dirt level helps maintain proper water flow. If performance drops, the cartridge should be cleaned as intended and rinsed again before further use.

Compatibility with housings

The cartridge is compatible with most 10" housings, which makes it easy to use in popular home installations. Its standard size means it can be conveniently used as a replacement filter cartridge in many systems designed for water purification and treatment.

Additional important information

• Diameter: 2"
