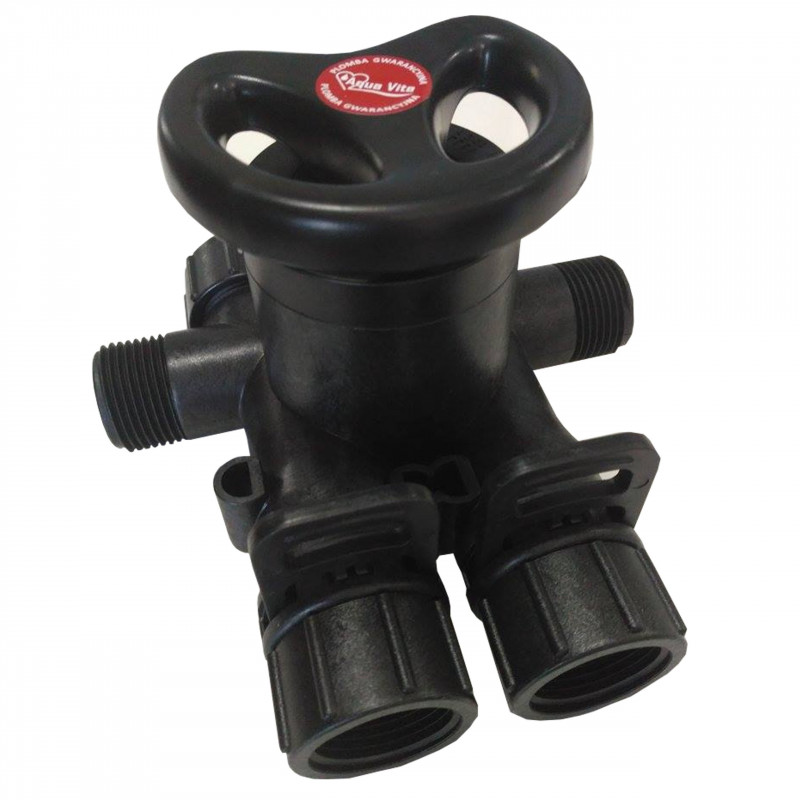

BY-PASS TO WATER SOFTENER Rx BYPASS BYPASS

Functional by-pass for a softener with an Rx head

The model is designed to work with water softeners equipped with an Rx head. It combines several important operating functions in one design, which makes it easier to operate the installation and improves the convenience of using the entire water treatment system.

The main advantage of this solution is the ability to consciously control the flow. The user can direct the water around the softening station, completely shut off the flow, or set the appropriate level of mixing treated water with raw water. Such a configuration is useful when precise adjustment of water quality is needed or when the softener needs to be temporarily taken out of operation.

Main functions and benefits

Water mixer

The built-in mixer allows you to set the blending of treated water with raw water. This is a practical function wherever a specific degree of softening is expected rather than complete removal of hardness. Adjustment is more convenient thanks to the mixer scale marked 1-2-3-4, which makes repeatable settings easier.

By-pass function

The by-pass allows water to flow outside the softening station. This makes it possible to bypass the device when service work, installation tests, or periodic shutdown of the system are required. The design also allows the flow to be completely shut off.

Water meter turbine

The unit is equipped with a water meter turbine, which is used to monitor water consumption. This is an important function for users who want to maintain greater control over the operation of the installation and the softener.

Usage flexibility

By combining a bypass, mixer, and meter in one component, the user gains greater freedom in managing the quality and flow of water in the installation. This solution is especially useful where water treatment needs to be adapted to specific household or technical requirements.

Installation and compatibility

The by-pass has been adapted for installation with water softeners with an Rx head. The 1-inch installation thread makes it possible to choose the water inlet and outlet — from the rear or from the side. This increases installation versatility and makes it easier to adapt to various plumbing layouts.

Connection to the head is convenient thanks to detachable connectors, which make installation and any later disassembly easier. The connection spacing on the head side is 50 mm.

Why choose this model

• designed for water softeners with an Rx head,
• allows bypassing the softening station,
• lets you completely shut off the flow,
• has a built-in mixer for adjusting the blending of treated water with raw water,
• the 1-2-3-4 scale makes mixing adjustments easier,
• the meter turbine supports water consumption monitoring,
• the 1-inch thread provides broad connection options,
• option to choose inlet and outlet: rear or side,
• detachable connectors make connection to the head easier,
• the connection spacing on the head side is 50 mm.

Use in everyday operation

This component works well in installations where both ease of operation and the ability to respond quickly to changing needs are important. It makes managing the operation of a water softener easier without interfering with the entire system. In practice, this means greater control over water quality, consumption, and the flow through the installation itself.

It is a good choice for users who want to combine bypass functionality with water mixing adjustment and flow control. The solution complements a modern water filter, water softener, and other installation components responsible for water treatment.
