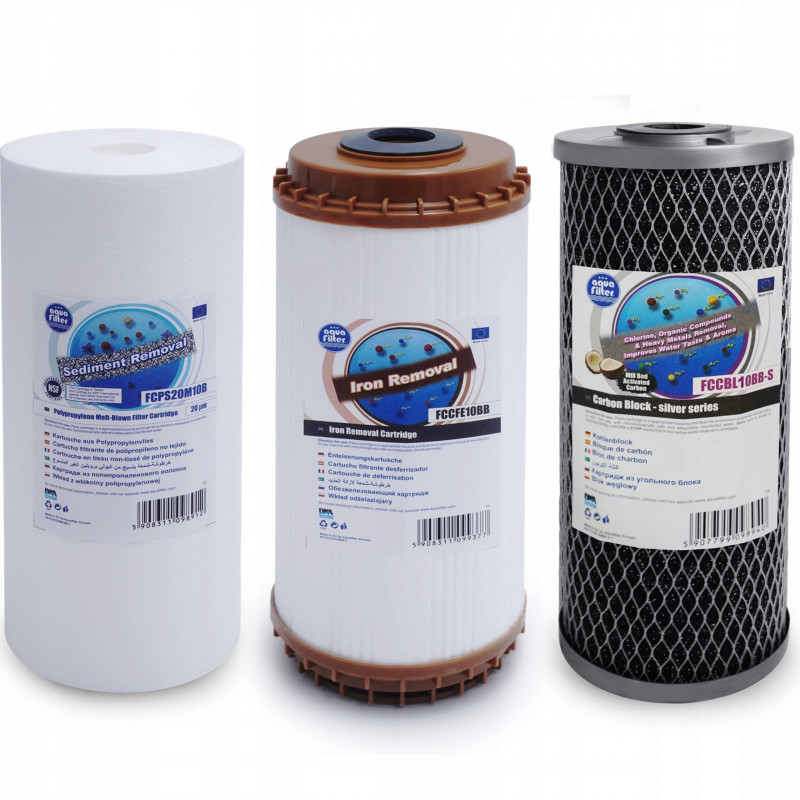

BIG BLUE FCCFE10BB FCCBL10BB-S FCPS20M10B CARTRIDGES

Complete set of 3 Big Blue cartridges for effective water filtration

The set has been composed so that each cartridge is responsible for a different stage of water quality improvement. The combination of mechanical filtration, iron removal, and carbon filtration makes it possible to obtain water better prepared for everyday use, consumption, and for protecting water installations and household appliances.

This solution works in the HHBB10B station and in standard 10" Big Blue inline housings. It is a convenient way to carry out comprehensive water treatment without having to select compatible cartridges on your own.

What is included in the set

• FCPS20M10B – mechanical cartridge,
• FCCFE10BB – iron-removal cartridge,
• FCCBL10BB-S – carbon cartridge.

How this cartridge set works

Each element performs a specific function in the filtration process. The mechanical cartridge is responsible for retaining solid contaminants, the iron-removal cartridge reduces iron compounds responsible for stains and deterioration of the water's usability parameters, and the carbon cartridge improves organoleptic properties and limits the presence of chlorine and selected organic contaminants.

This arrangement supports everyday water use in households and small industrial facilities. The set helps produce water that is safer for consumption while also limiting the negative impact of contaminants on fixtures, the installation, and equipment.

FCPS20M10B – mechanical cartridge

The FCPS20M10B model works as the first stage of drinking water and utility water filtration. Its task is to capture mechanical contaminants present in the installation or incoming water before it reaches the next treatment stages.

Application and construction

• Application: as the first stage of drinking water and utility water filtration.
• Construction: made of polypropylene nonwoven fabric with a foam structure and microbubbles.
• Function: removes sand, silt, rust, and other mechanical contaminants.

Main advantages of the FCPS20M10B cartridge

• Excellent contaminant absorption.
• Low pressure drop.
• Resistance to chemicals and microorganisms.
• Has PZH approval.

FCCFE10BB – iron-removal cartridge

The FCCFE10BB cartridge has been designed for effective water iron removal. It is responsible for retaining iron compounds dissolved in water, which can cause a deterioration in taste and odor as well as the formation of hard-to-remove streaks and discoloration.

Application and operation

• Application: effective iron removal from water.
• Function: retains iron compounds dissolved in water.

Main advantages of the FCCFE10BB cartridge

• High capacity for capturing iron ions.
• Improves the taste and odor of water.
• Prevents the formation of yellow and rust-colored stains.
• Equipped with a final filter.
• Has PZH approvals and is made of materials approved by NSF and FDA.

FCCBL10BB-S – carbon cartridge

The FCCBL10BB-S cartridge is responsible for the final improvement of water quality in terms of taste, odor, and reducing selected chemical contaminants. The activated carbon from coconut shells used in it is often chosen in filtration systems where usability and everyday water comfort matter.

Application and construction

• Application: removal of chlorine and organic contaminants.
• Function: contains activated carbon from coconut shells.

Main advantages of the FCCBL10BB-S cartridge

• Removes up to 99% of free chlorine.
• Effectively eliminates organic water contaminants.
• Removes heavy metals and pesticides.
• Improves the taste and odor of water.
• High service life and efficiency.

Main benefits of using the set

• Comprehensive combination of mechanical filtration, iron removal, and carbon filtration.
• Effective removal of sand, silt, rust, and other mechanical contaminants.
• Reduction of iron compounds and limitation of yellow and rust-colored stains.
• Reduction of chlorine and organic contaminants.
• Improvement of the taste and odor of water.
• Support for protecting water installations and household appliances from the negative impact of contaminants.
• Compatibility with the HHBB10B station and 10" Big Blue housings.

Where this set works best

The Big Blue cartridge set is a practical solution for homes and small industrial facilities where an effective water filtration system is needed. It can serve as a standalone water treatment stage in a utility installation or as a preliminary stage before more advanced solutions such as a reverse osmosis filter, an osmosis filter, a reverse osmosis system, or reverse osmosis.

With proper water preparation at earlier stages, you can improve the performance of the entire system and reduce the contact of equipment with mechanical contaminants, iron, and chlorine.

Technical specification

FAQ
