Quick coupling elbows

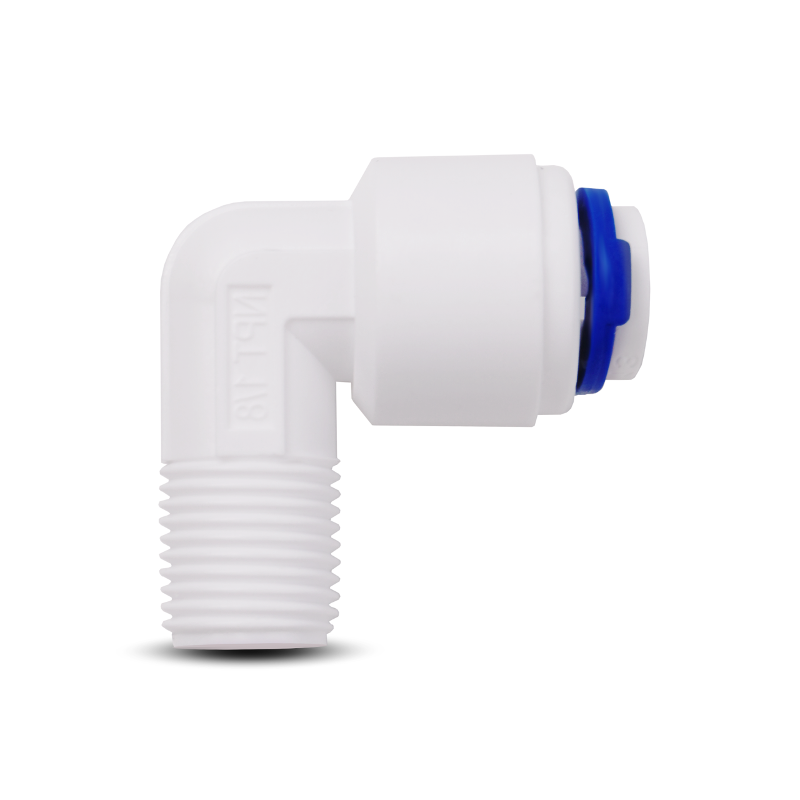

A4ME2-W elbow connector 1/4T x 1/8 GZ
Rating
A4ME2-W elbow connector, a quick connector for water treatment installations and RO membrane housings. It allows for the connection of Read moreShow less
A4ME2-W elbow connector, a quick connector for water treatment installations and RO membrane housings. It allows for the connection of a 1/4" (6.4 mm) hose to a 1/8" external thread. The installation of the cable is done by pushing it in until it stops, which facilitates quick servicing and replacement of components in the system.
Specifications
SK14T18GZ
9636 Items
- Accessory type
- Fitting
- Compatibility
- Universal RO systems
- Fitting type
- Elbow
- Model
- Kolanko A4ME2-W
- Product type
- Quick fitting
- Thread gender
- Male
View full specifications
- Thread size
- 1/8″
- Tube outer diameter
- 1/4″
Description
The A4ME2-W 1/4T x 1/8 GZ elbow connector is a practical quick connector designed for water treatment installations, especially where an osmosis membrane, osmosis filter, or a complete reverse osmosis system is in use. This component enables a quick and secure connection of a 1/4" (6.4 mm) tube to a 1/8" male thread, streamlining installation, servicing, and replacement of components in domestic filtration systems.
The elbow design makes it easier to route the line in limited space, while the push-fit connection allows the tube to be inserted simply by pushing it in until it stops. It is a convenient solution for osmosis membrane housings used in under-sink systems and other installations where quick assembly and compatibility with standard 1/4" lines matter.
Application and purpose
The A4ME2-W elbow connector is designed for use in water treatment systems. It is most commonly used in osmosis membrane housings, where a 1/4" line needs to be connected to a 1/8" male thread.
This solution is particularly well suited to domestic under-sink installations where reverse osmosis or another water filtration system based on standard 1/4" tubing is operating.
Main product features
- Model: A4ME2-W elbow
- Connector type: quick connector for easy and fast installation
- Thread size: 1/8" male
- Tube compatibility: designed for a 6.4 mm (1/4") tube
- Application: for osmosis membrane housing
- Design: elbow shape for easier change of line direction
Functionality in RO systems
The A4ME2-W is used in installations with reverse osmosis filters and other water purification systems. Thanks to its standard connection dimensions, it can be used in typical osmosis membrane housings.
The elbow is compatible with standard osmosis membrane housings both at the water inlet and at the drain outlet. Such versatility makes it easier to select a replacement part during servicing or system upgrades.
Installation and service convenience
One of the most important advantages of this connector is the simple tube installation. The tube is fitted by pushing it into the connector until it stops. This solution eliminates the need for additional tightening of the line and speeds up handling of the entire system.
The quick connector is convenient during inspections, component replacement, and system servicing. In practice, this means shorter installation time and a lower risk of mistakes when connecting lines in tight installation spaces.
If additional sealing is required, PTFE tape should be wrapped only on the threaded element. The 1/4" tube itself is installed by pushing it into the connector until it stops.
Why choose the A4ME2-W elbow connector
- enables quick connection of a 1/4" tube to a 1/8" male thread
- is designed for osmosis membrane housings
- works well in domestic water treatment systems and under-sink installations
- makes line routing easier thanks to its elbow design
- speeds up installation and later servicing of system components
- fits standard applications at the water inlet and drain outlet in RO systems
Technical specifications
| Parameter | Value |
|---|---|
| Model | A4ME2-W elbow |
| Connector type | Quick connector |
| Application | For osmosis membrane housing |
| Thread size | 1/8" male |
| Tube compatibility | 6.4 mm (1/4") tube |
| Tube installation method | Push the tube in until it stops |
| Installation purpose | Domestic water treatment systems, including under-sink systems and RO technologies |
| Functional compatibility | Standard osmosis membrane housings, both at the water inlet and at the drain outlet |
| Thread sealing | If needed, PTFE tape only on the threaded element |
FAQ
What is the A4ME2-W connector used for?
The A4ME2-W connector is used to connect a 1/4" (6.4 mm) tube to a 1/8" male thread in water treatment installations, especially in osmosis membrane housings.
Is this connector suitable for reverse osmosis systems?
Yes, the product is designed for use in reverse osmosis systems and other domestic water filtration and treatment systems.
What tube can be connected to this quick connector?
The connector is designed for a 6.4 mm diameter tube, i.e. the standard 1/4" hose used in many RO installations.
What thread does the A4ME2-W connector have?
The product has a 1/8" male thread.
How do you install the tube in the quick connector?
The tube should be inserted into the connector until it stops. This installation method allows for a quick connection without additional tightening of the line.
Do you need to use PTFE tape?
Not for installing the tube itself. If additional sealing is required, PTFE tape is used only on the threaded element.
Where can this connector be used in the membrane housing?
The elbow is compatible with standard osmosis membrane housings both at the water inlet and at the drain outlet.
Why choose the elbow version instead of a straight connector?
The elbow design makes it easier to change the direction of the line, which is especially useful in tight installation spaces, e.g. under the sink.
