FHPR34-B1-AQ Aquafilter корпус трубки 3/4"

Durable inline housing for cold water

Aquafilter FHPR34-B1-AQ is a two-piece 10" inline housing designed for operation with cold water. The construction consists of two basic elements: a transparent sump and a head with a 3/4" brass thread. This solution makes everyday use, installation, and replacement of the filter cartridge easier.

The housing is equipped with two sealing O-rings: a face O-ring and one under the head. Double sealing increases the tightness of the entire system and helps maintain safe operation of the installation at working pressure up to 6 bar.

Transparent sump and convenient cartridge inspection

The transparent sump allows you to quickly assess the degree of cartridge contamination without having to dismantle the housing. This is a practical feature in everyday use, especially when the housing works as a pre-filter for water in a domestic installation or as protection for subsequent treatment stages.

The housing is also equipped with a pressure relief valve that allows the air accumulated inside the filter to be removed after cartridge replacement. This makes restarting the system after service more convenient and predictable.

Where is the Aquafilter FHPR34-B1-AQ housing suitable?

The FHPR34-B1-AQ model can be installed individually or connected in series with other filter housings. This provides great flexibility when designing simple and more advanced filtration systems.

• on the pipe supplying cold water to an apartment, with moderate water demand,
• before household appliances such as a washing machine and dishwasher,
• as a pre-treatment element that helps protect further filtration stages,
• in installations where a replaceable 10" filter cartridge is needed.

Installation before expensive household appliances helps protect them from the buildup of various kinds of contaminants present in water. It is a simple way to support equipment durability and reduce the risk of problems resulting from the presence of solid particles.

Compatibility with 10-inch cartridges

The housing works with a wide range of 10" cartridges available on the market. Thanks to this, the filtration method can be matched to the specific needs of the installation and water quality.

• mechanical cartridges,
• specialist cartridges,
• carbon cartridges,
• softening cartridges,
• iron removal cartridges,
• antibacterial cartridges.

This versatility means that the housing can operate both as a basic inline filter and as part of a more advanced solution, for example before a reverse osmosis system, an RO filter, or another set for improving water quality.

Installation and operation

Correct installation is very important for safe and convenient operation of the housing. The housing should be suspended on a mounting plate, which supports the stability of the entire set and facilitates later service handling.

Main advantages

• two-piece 10" construction,
• transparent sump for checking cartridge condition,
• head with 3/4" brass thread,
• two sealing O-rings increasing tightness,
• pressure relief valve facilitating startup after cartridge replacement,
• possibility of individual or series installation,
• wide compatibility with 10" cartridges.

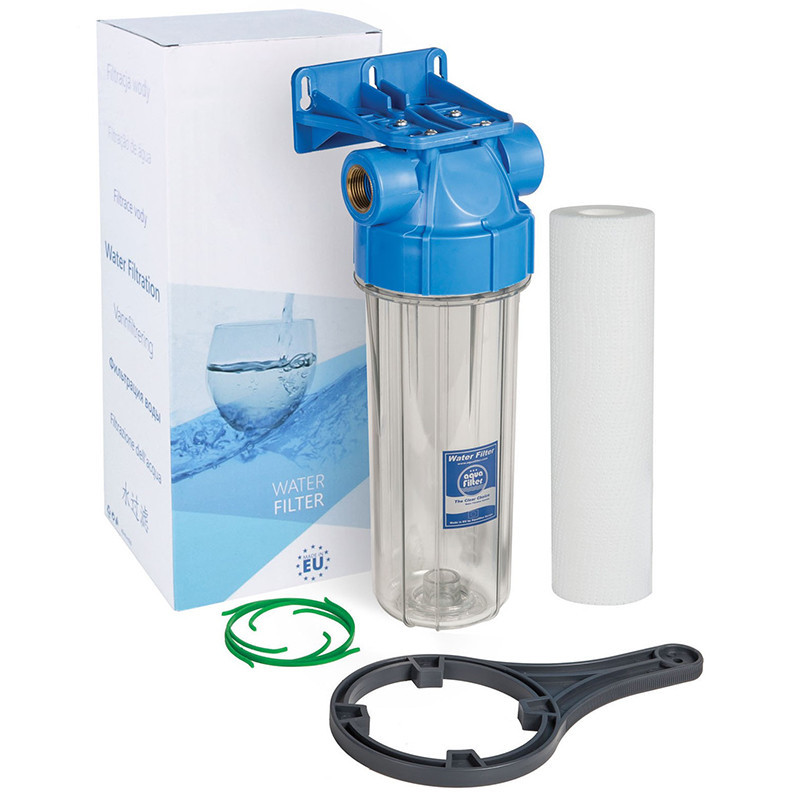

Set contents

• FHPR34-B1-AQ inline housing
• Two sealing O-rings
• FCPS5 polypropylene foam filter cartridge
• Bacteriostatic centering disc
• Wrench
• Mounting plate

Technical specification
